主要应用领域/Typical Applications |
机器人 robot 工业自动化 Industrial automation 航空航天 Aerospace field 医疗器械 Medical device
|
技术参数/Technical Parameter |
||

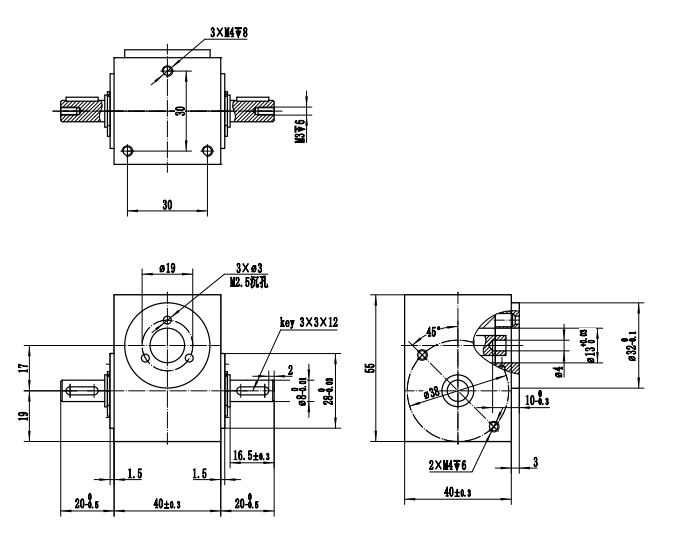

减速器外径 Gearbox Diameter |
mm |
40*40*55 |
输出端轴承 Bearing of Shaft |
-- |
滚珠轴承 Ball Bearing |
径向间隙 Radial Clearance |
mm |
≤0.1 |
轴向间隙 Axial Clearance |
mm |
≤0.2 |
推荐输入转速 Permission Input Speed |
rpm |
≤6,000 |
推荐温度范围 Recommended Temperature Range |
℃ |
-20 to +120 |
允许安装力 Permission Installation Force |
N |
≤120 |
轴向负载 Axial Load |
N |
≤80 |
径向负载 Radial Load |
N |
≤120 |
速比 |
- |
20 |
30 |
40 |
50 |
60 |
连续输出扭矩 Torque |
Nm |
2 |
2 |
2 |
2 |
2 |
堵转扭矩 Stall Torque |
Nm |
3 |
3 |
3 |
3 |
3 |
最大效率 Max Efficiency |
% |
50 |
40 |
40 |
35 |
35 |
重量 Weight |
g |
320 |
320 |
320 |
320 |
320 |
空载回差No-Load Backlash |
° |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
