主要应用领域/Typical Applications |
技术参数/Technical Parameter |
||
|
医疗器械 Medical device 数码机电 Digital products 无人机 UAV 工业自动化 Industrial automation |
减速器外径 Gearbox Diameter |
mm |
19 |
|
optional |
20 |
||
|
输出端轴承 Bearing of Shaft |
-- |
滚珠轴承 Ball Bearing |
|
|
径向间隙 Radial Clearance |
mm |
≤0.1 |
|
|
轴向间隙 Axial Clearance |
mm |
≤0.1 |
|
|
推荐输入转速 Permission Input Speed |
rpm |
≤20,000 |
|
|
推荐温度范围 Recommended Temperature Range |
℃ |
-20 to +165 |
|
|
允许安装力 Permission Installation Force |
N |
≤100 |
|
|
轴向负载 Axial Load |
N |
≤40 |
|
|
径向负载 Radial Load |
N |
≤50 |
|
|
产品信息/Product Information |
|||||||||
|
级数 Stage |
1 |
2 |
3 |
4 |
5 |
||||
|
订货号 Number of Order |
1619002 |
1619008 |
1619022 |
1619039 |
1619056 |
1619070 |
1619112 |
1619134 |
|
|
速比 Ratio |
3.95 |
15.58 |
55.24 |
107.48 |
195.87 |
300.24 |
694.43 |
1245.51 |
|
|
订货号 Number of Order |
1619003 |
1619010 |
1619024 |
1619043 |
1619059 |
1619077 |
1619115 |
1619145 |
|
|
速比 Ratio |
4.5 |
17.76 |
61.51 |
126.77 |
223.29 |
359.7 |
791.65 |
1453.86 |
|
|
订货号 Number of Order |
1619004 |
1619012 |
1619027 |
|
1619063 |
1619084 |
1619118 |
1619156 |
|
|
速比 Ratio |
5.31 |
20.25 |
70.12 |
|
248.6 |
410.06 |
881.4 |
1618.67 |
|
|
订货号 Number of Order |
|
1619014 |
1619031 |
|
1619066 |
1619100 |
1619128 |
1619190 |
|
|
速比 Ratio |
|
23.88 |
82.7 |
|
276.78 |
570.47 |
1092.55 |
3027.9 |
|
|
其他速比资料请向量能公司内部索取。Please contact us for more ratios information. |
|||||||||
|

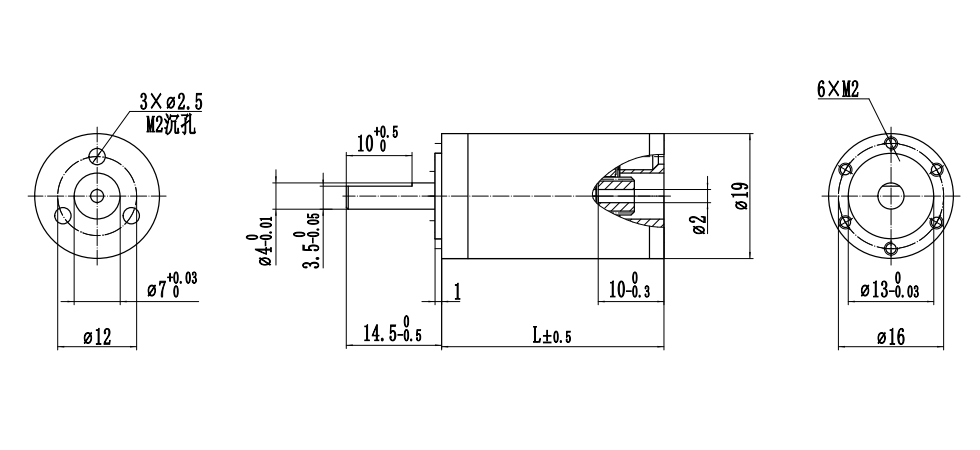

长度 L |
mm |
21.8 |
27.3 |
33.8 |
39.3 |
44.8 |
|||
|
连续输出扭矩 Torque |
Nm |
0.3 |
0.3 |
0.6 |
0.6 |
0.8 |
|||
|
堵转扭矩 Stall Torque |
Nm |
0.5 |
0.5 |
0.9 |
0.9 |
1.2 |
|||
|
最大效率 Max Efficiency |
% |
90 |
81 |
73 |
65 |
59 |
|||
|
重量 Weight |
g |
38.0 |
44.0 |
55.0 |
62.0 |
69.0 |
|||
|
空载回差No-Load Backlash |
° |
1 |
1.5 |
1.5 |
2 |
2 |
|||
